System architecture

Purpose

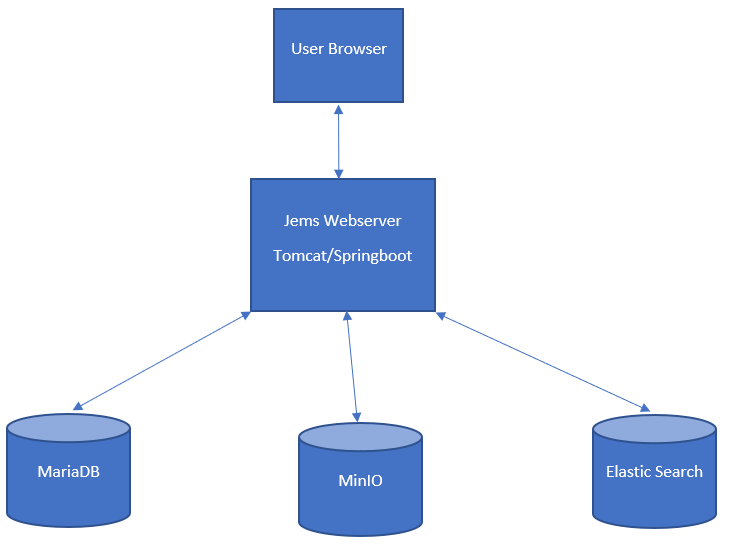

High level system architecture diagram represents components and its belongings

Architecture components

• Jems Web/Application server

• MariaDB - database storage

• MinIO - file storage

• Elastic Search - system logging
