General purpose

The purpose of this document is to provide an overview of how to manage logos in the Jems service.

Location and access

The Jems logo configuration is based on the system dependency Minio.

By default, Minio is accessible on the same host where the Jems service is running, with port number 9001.

To adapt the host name and port number for Minio, you should use docker-compose.yml or adapt the Minio startup parameters.

Please see the installation instructions for more information. Installation instructions

Please make sure that the firewall rules allow access to the Minio service.

Instructions to enable and disable access to Minio

The instructions below are related to CentOs

Enable access
sudo firewall-cmd --zone=public --permanent --add-service=http
sudo firewall-cmd --zone=public --permanent --add-port 9001/tcp
sudo firewall-cmd --reload

Don`t forget to close the firewall after you finished using the Minio service.

Disable access

sudo firewall-cmd --zone=public --remove-port=9001/tcp
sudo firewall-cmd --reload

Configuration steps

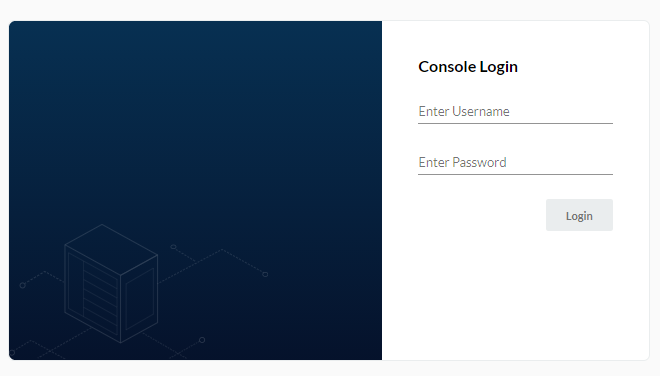

Please use the default credentials.

Access key	Secret key
jemsminio	Minio@2020

Create new bucket

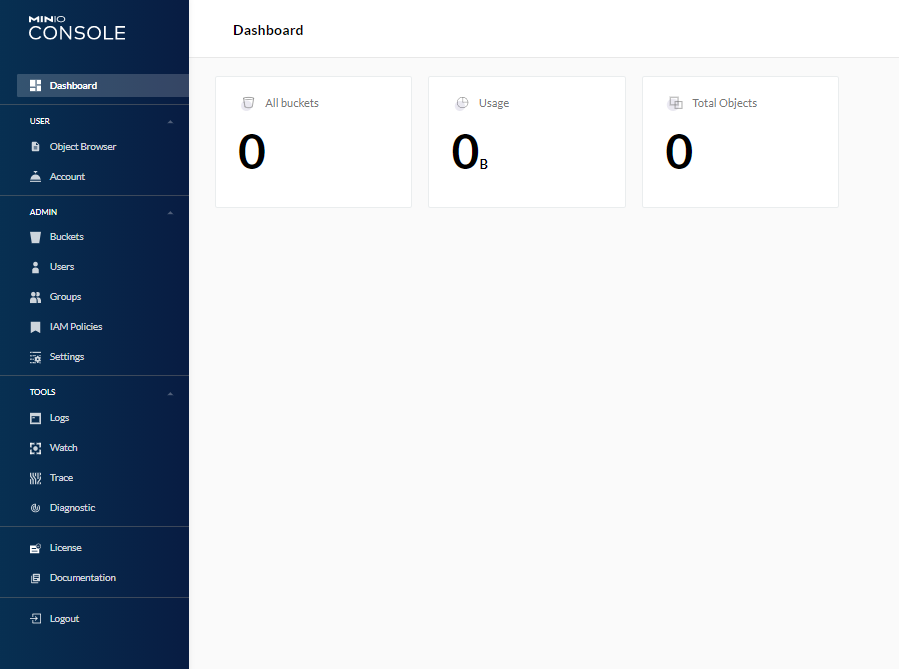

In the Minio browser

Click on menu item

Press the button

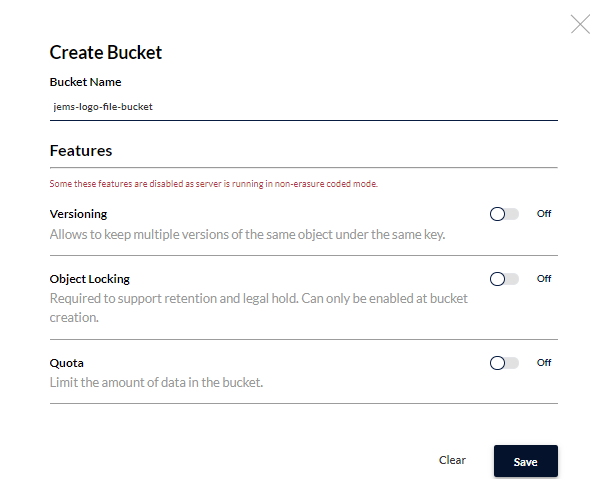

To create a new bucket

Bucket
jems-logo-file-bucket

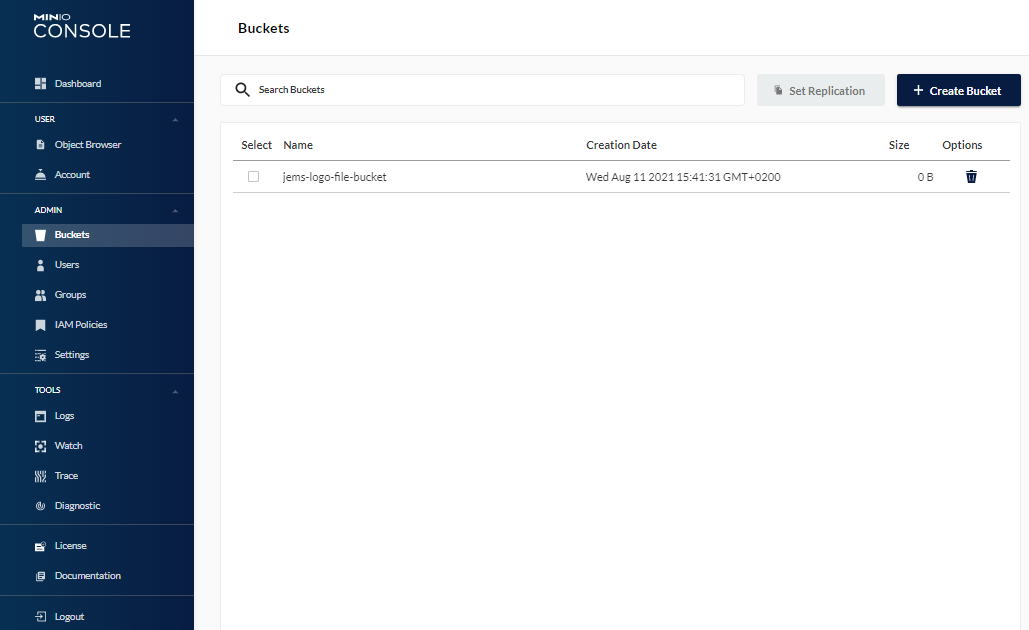

So that the Minio browser looks like this

Upload logo file

Upload logo file by clicking on the menu item

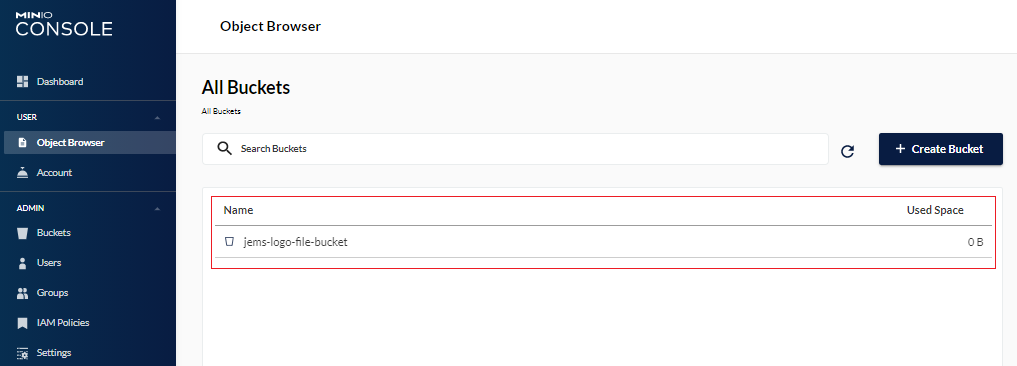

Open bucket

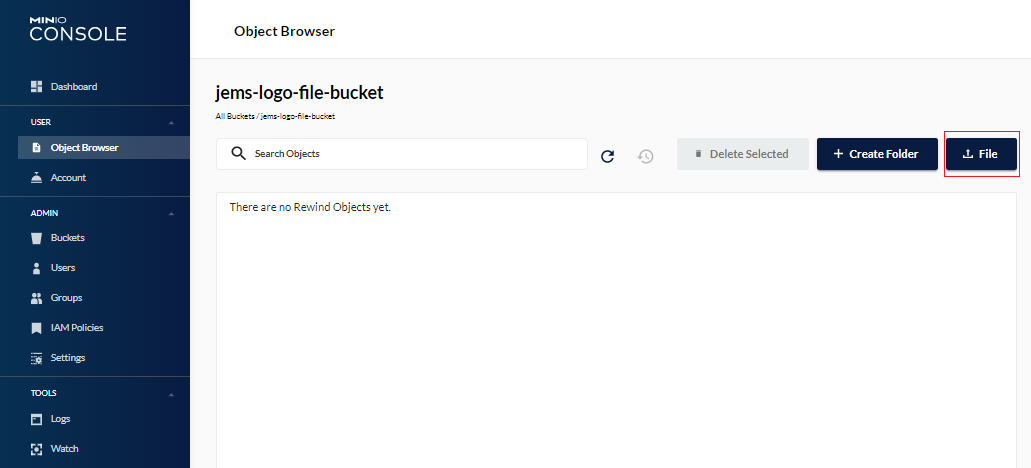

Upload file

Jems needs two image files of the programme logo:

File name	Purpose	Recommended image size
InterregProgrammeLogo_200.png	Your programme logo to be used in Jems, on login screen and in the main navigation (top left corner)	The available space for the logo in the top navigation bar is in landscape format (meaning: more width than height). We recommend that any uploaded logo file also is provided in landscape aspect ratio, with a minimum vertical resolution of 200px.
InterregProgrammeLogo_96.png	Exports (e.g. AF export)	minimum vertical resolution of 96px.
InterregProgrammeLogo_48.png	Exports (e.g. AF export)	174x48 px

File name

Purpose

Recommended image size


Your programme logo to be used in Jems, on login screen and in the main navigation (top left corner)

The available space for the logo in the top navigation bar is in landscape format (meaning: more width than height).

We recommend that any uploaded logo file also is provided in landscape aspect ratio, with a minimum vertical resolution of 200px.


Exports (e.g. AF export)

minimum vertical resolution of 96px.


Exports (e.g. AF export)

174x48 px

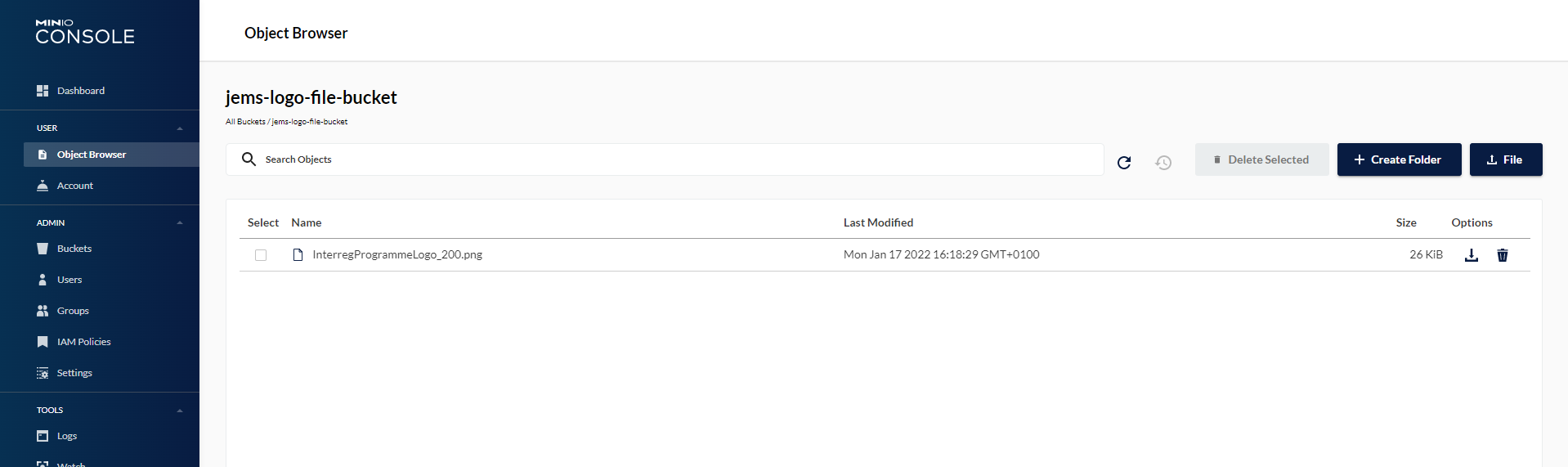

After a successful upload, your Minio browser should look like this

After logo file upload

Please make sure that after uploading the file, you disable the access to the Minio service with firewall rules.

If you decide to change the Access key or Secret key for Minio, please make sure that you also update the startup parameters of the Jems service.

Please see the installation instructions for more information Installation instructions
